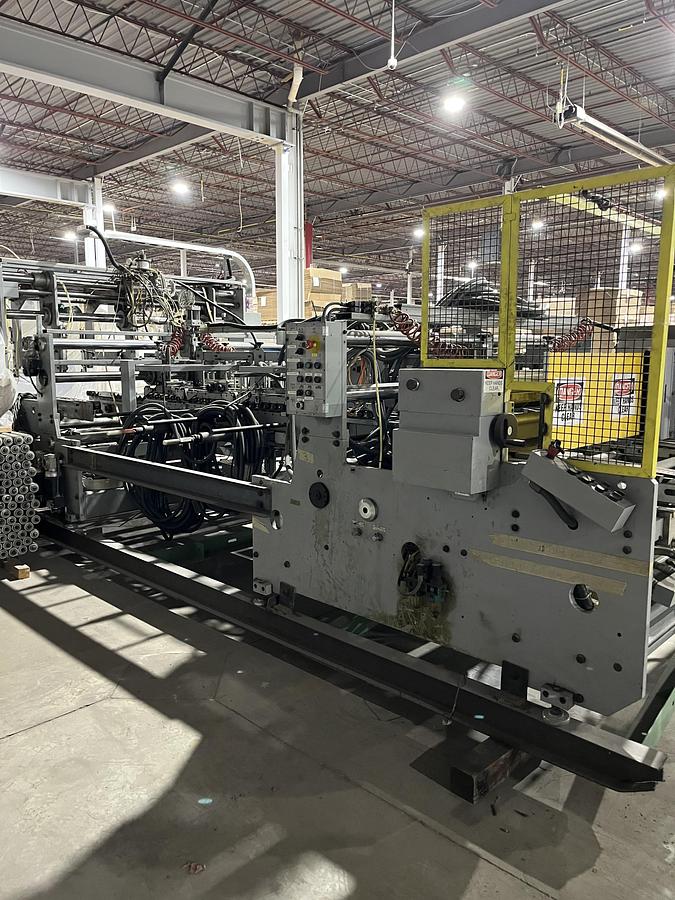

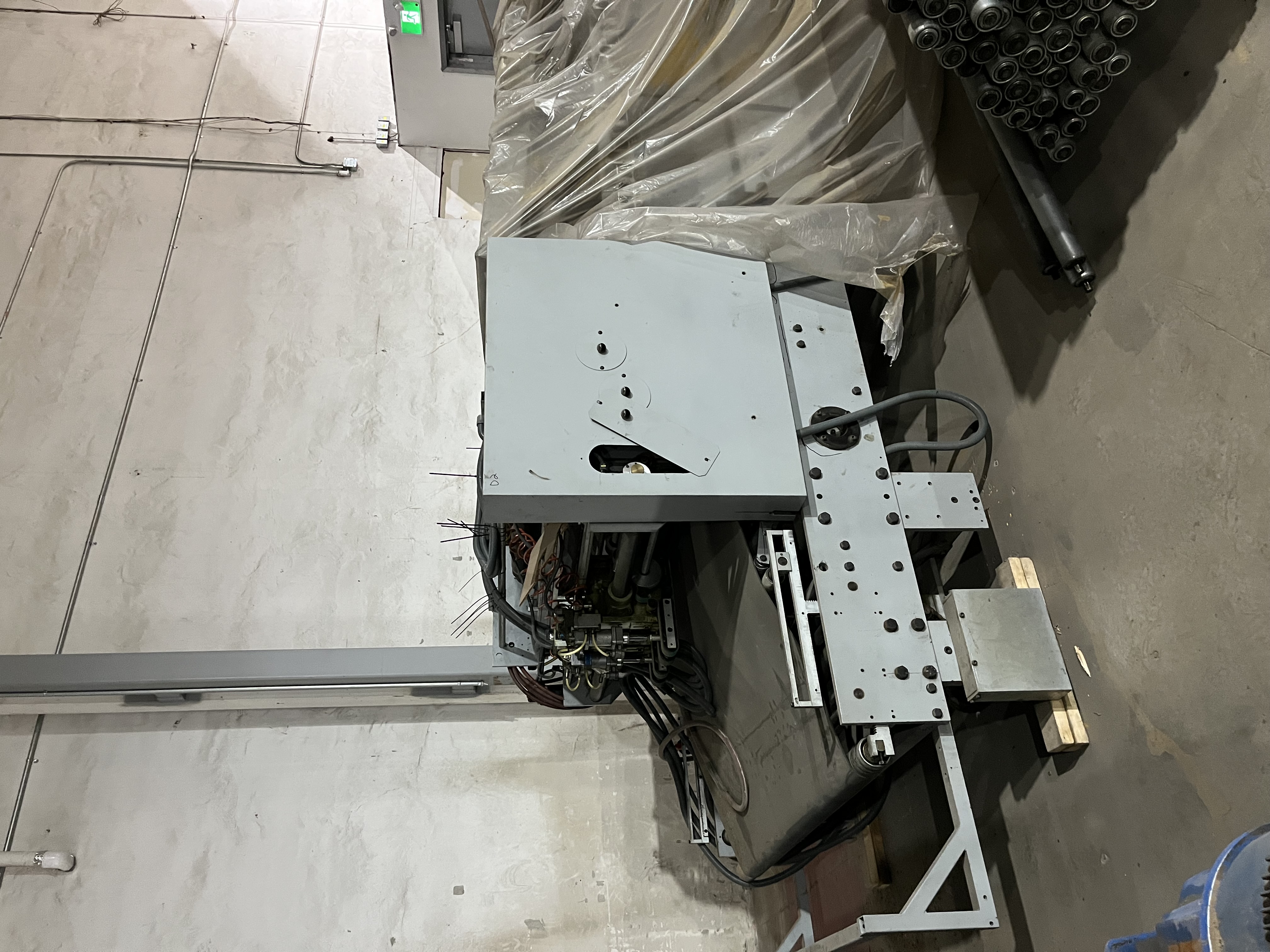

VEGA MAXI-225 89” Corrugated Specialty Gluer "Straight Line"

Location:Spring Valley, IL
or
Call +1 (312) 719-3009
Description
VEGA GALAXI 225 — Specialty Folder Gluer
Designed for folding and gluing solid board and corrugated boxes, including straight-line boxes, crash-lock bottoms, double-wall box constructions, and 4- and 6-corner glued boxes.
VEGA GALAXI 225 — Technical Specifications
- Open blank width: 420–2,250 mm / 16.54–88.58"
- Folded blank width: 200–1,100 mm / 7.87–43.31"
- Blank length: 180–1,400 mm / 7.09–55.12"
- Operating speed: 18–220 m/min / approximately 59–722 ft/min
- Solid board range: 500–1,500 g/m²
- Corrugated grades: A, B, C, E, BA and BC*
- Variable-speed motors: 2 × 17 kW
- Total installed power: 54 kW
- Overall length: 20,270 mm / approximately 66' 6"
- Overall width: 2,830 mm / approximately 9' 3"
- Overall height: 1,930 mm / approximately 6' 4"
- Net weight: 22,000 kg / approximately 48,502 lb
BC flute is listed for standard boxes only. Blank-size limits vary by box style.
Features:
- Continuous belt feeder with vacuum suction and pile-lifting slides.
- Motorized feeder-belt positioning with automatic locking.
- Electronically controlled cold-glue system with six upper nozzles.
- Electronic folding system for 4- and 6-corner boxes.
- Independently adjustable folding-belt speeds in the final folding section.
- Front and collecting-section electro-pneumatic squaring devices.
- Compression section with pneumatically adjustable upper-belt pressure.
- Pneumatic lifting of all upper carriers.
- Computer-controlled motorization and adjustment across 14 axes.
- Air-conditioned electrical cabinet.
Specifications
| Manufacturer | VEGA |
| Model | MAXI-225 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 00049 |
