Clark-Aiken Roll-to-Roll Paperboard Embosser – 60" Web Capacity

Overview

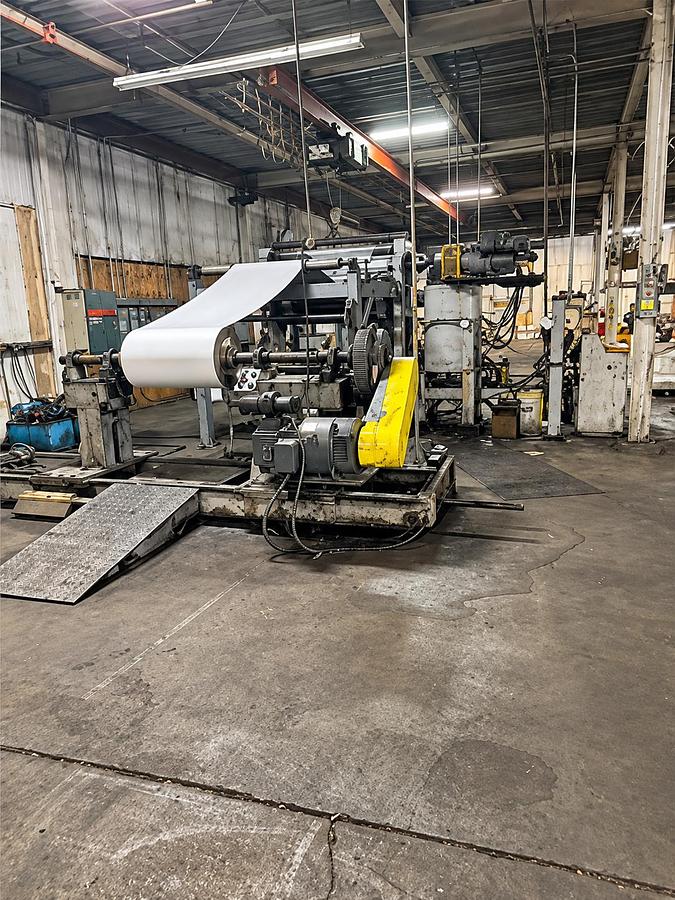

Heavy-duty Clark-Aiken roll-to-roll embossing line designed for continuous embossing of paperboard and similar web-fed materials.

The machine is configured to process paperboard approximately 0.016" to 0.024" in caliper, with roll widths up to 60" and roll diameters up to 72".

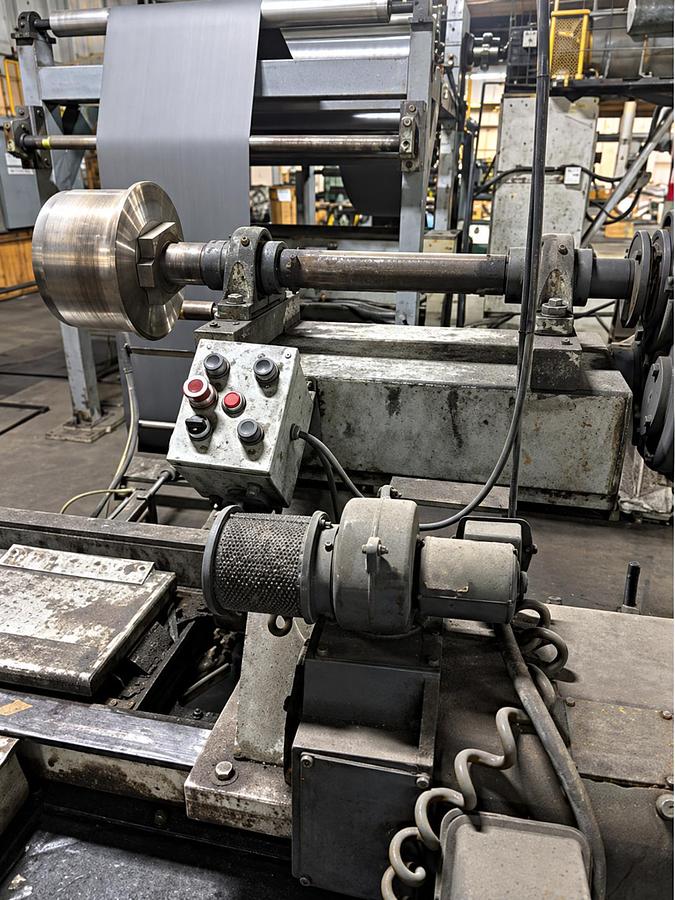

The system is equipped with dedicated embossing and rewind motors and includes a substantial assortment of interchangeable steel embossing rolls and hard-rubber lower rolls.

The machine is currently under power and can be demonstrated to qualified prospective buyers.

Key Specifications

• Maximum Web / Roll Width: 60"
• Maximum Roll Diameter: 72"
• Paperboard Caliper Range: Approx. 0.016"–0.024"
• Core Sizes: 4", 10", and 12"
• Electrical Supply: 480V
• Rewind Motor: 40 HP
• Embossing Motor: 25 HP
• Electrical Drives: Reliance and Joliet
• Approximate Installed Footprint: 75' L × 25' W
• Recorded Production Speed: Approx. 6,665 linear feet/hour
• Typical Operating Pressure: Approx. 800–900 lb
• Previously Operated Pressure Range: Up to approximately 1,200–1,400 lb

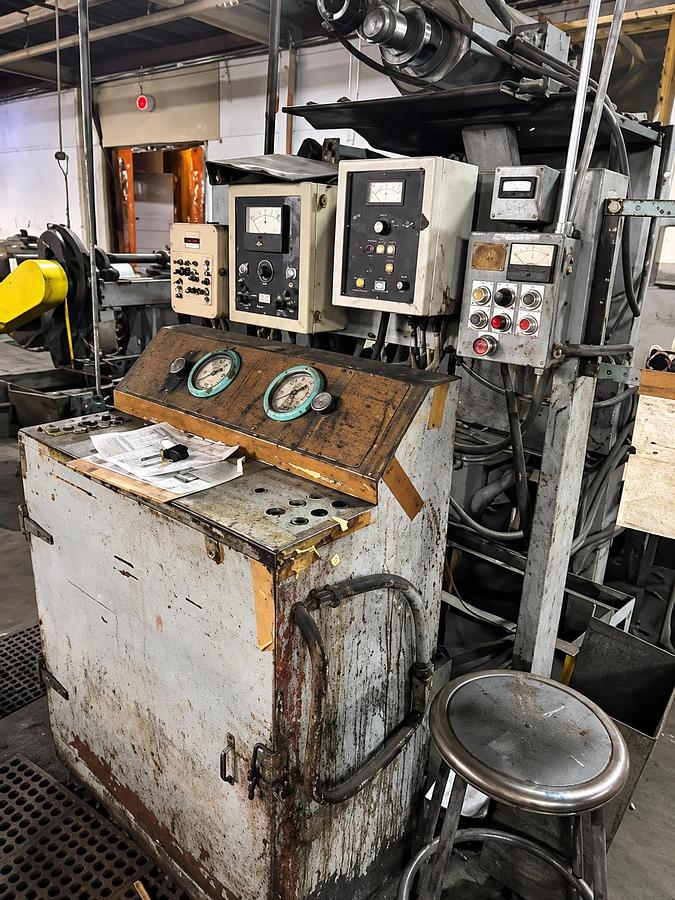

• Pressure Gauge Range: Up to 3,000 lb

The 3,000 lb gauge range should not be interpreted as a verified continuous operating capacity. Prospective buyers should verify production requirements during inspection.

Condition & Working State

The machine is currently:

• Under power
• Available for inspection
• Available for running demonstration

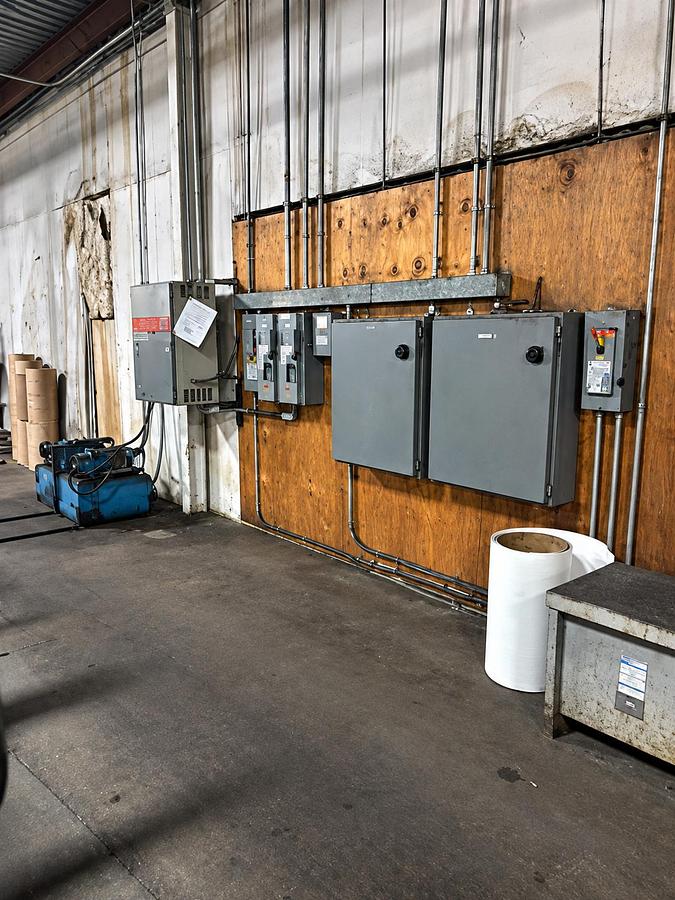

• Equipped with Reliance and Joliet electrical drive components
• Supplied with multiple embossing and lower rolls

Recent operating information indicates production at approximately 6,665 linear feet per hour at 800 lb of pressure.

Mechanical and electrical condition should be verified by the buyer during inspection based on the intended application and production requirements.
