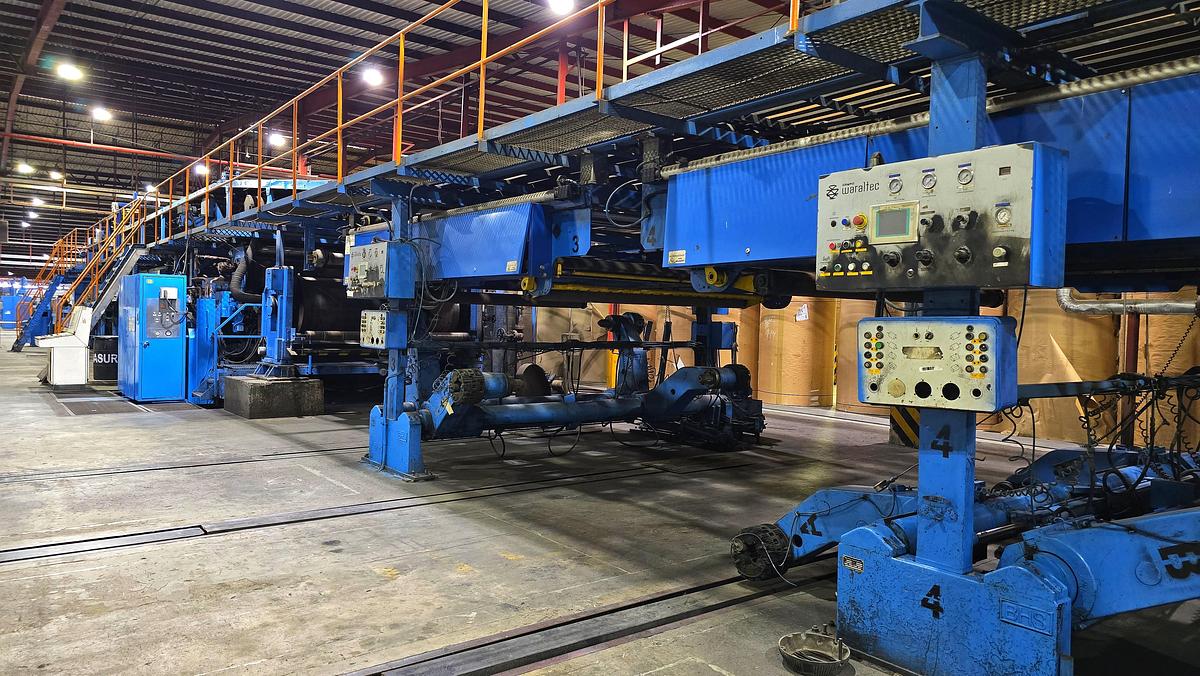

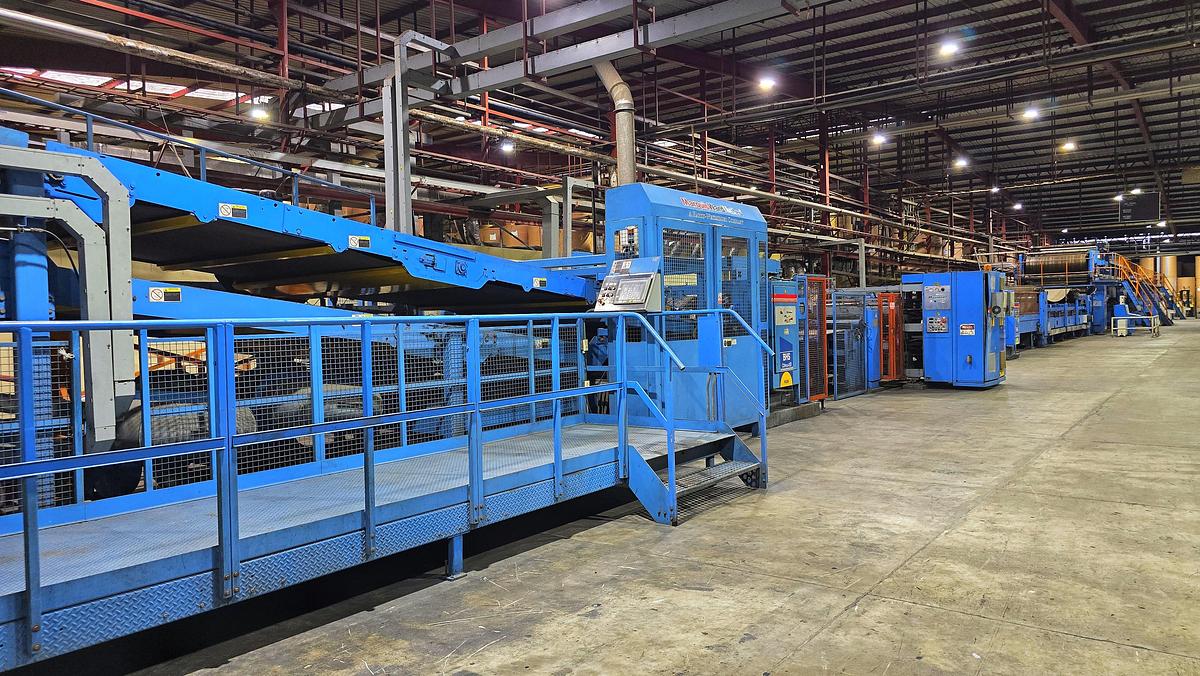

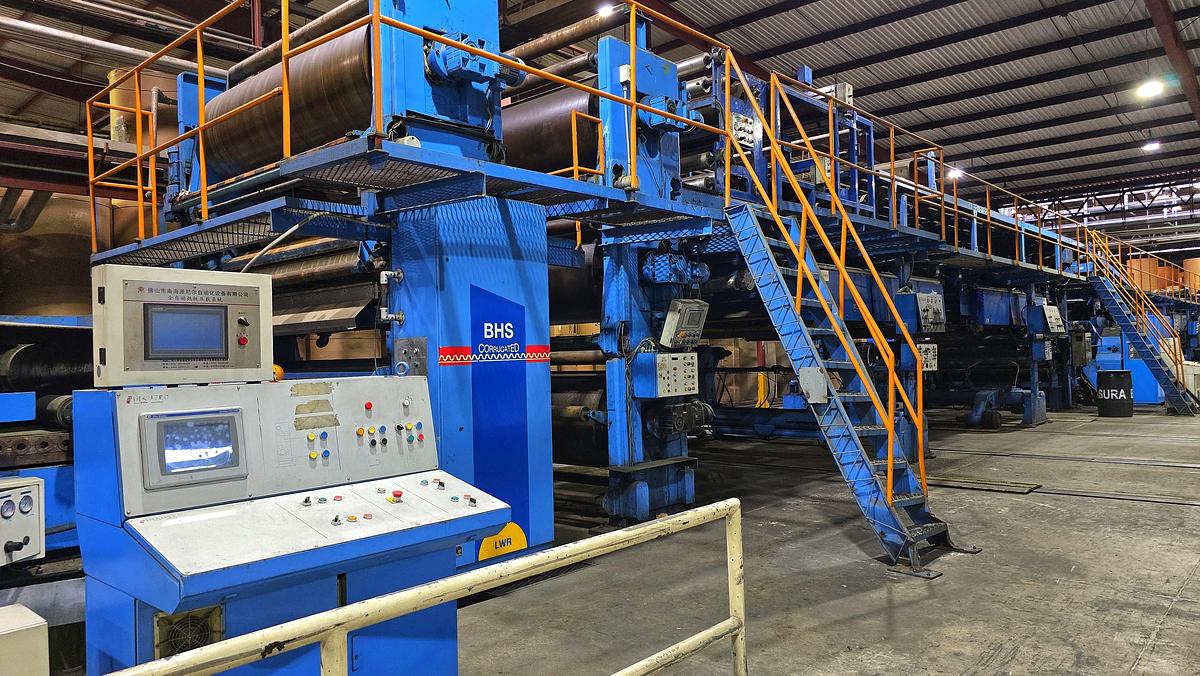

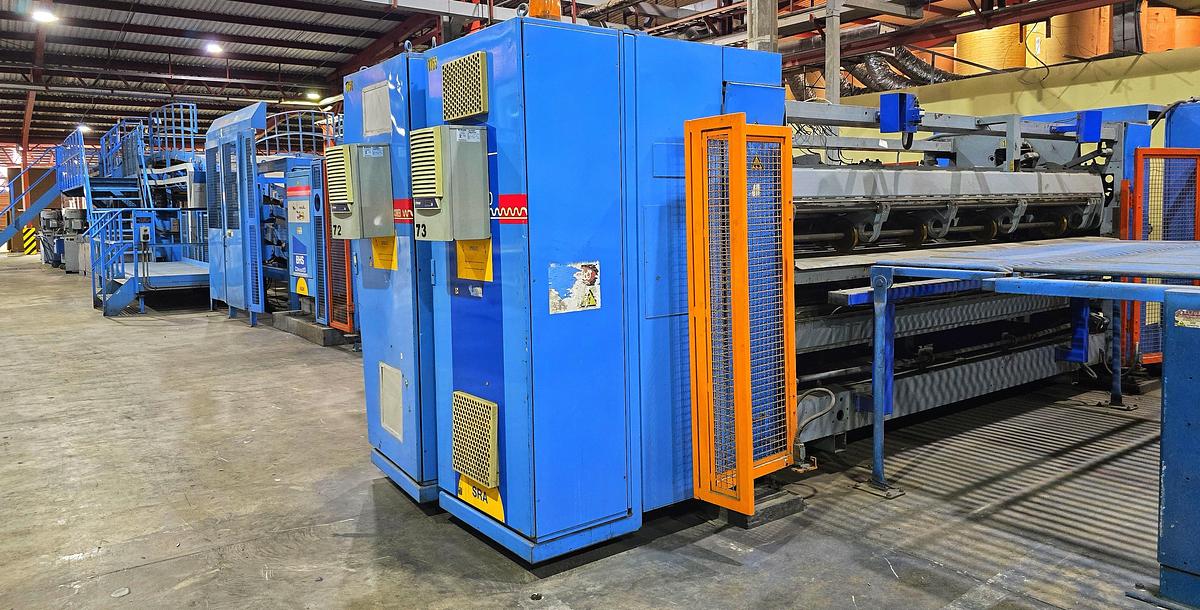

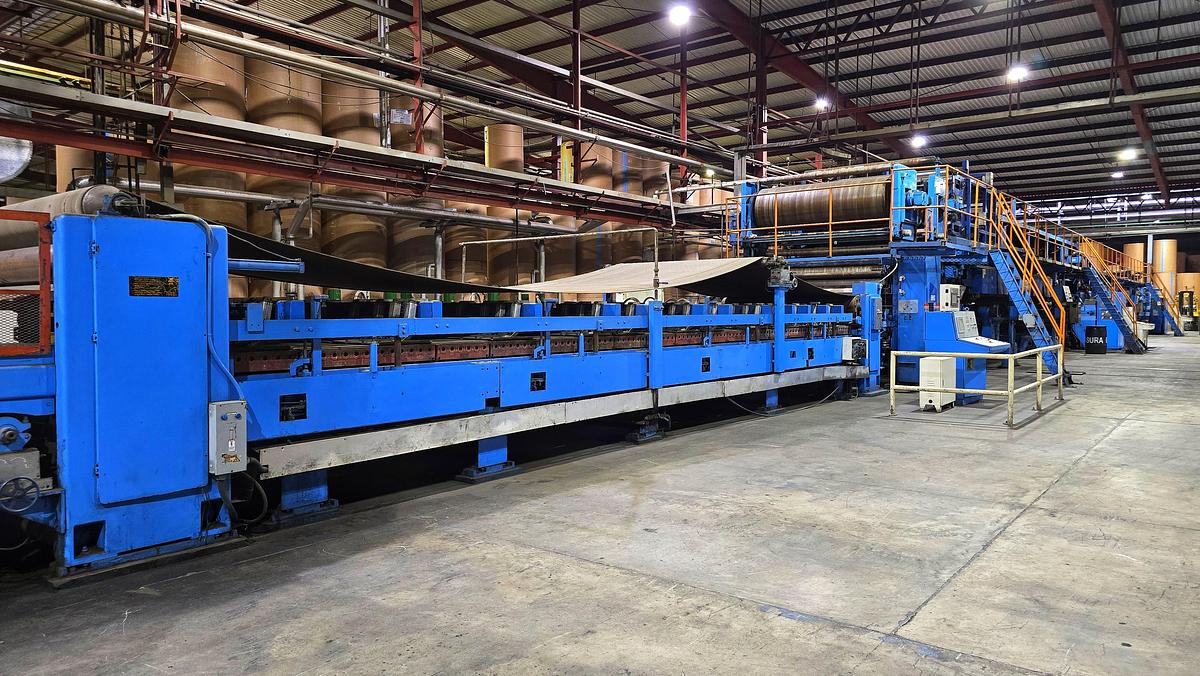

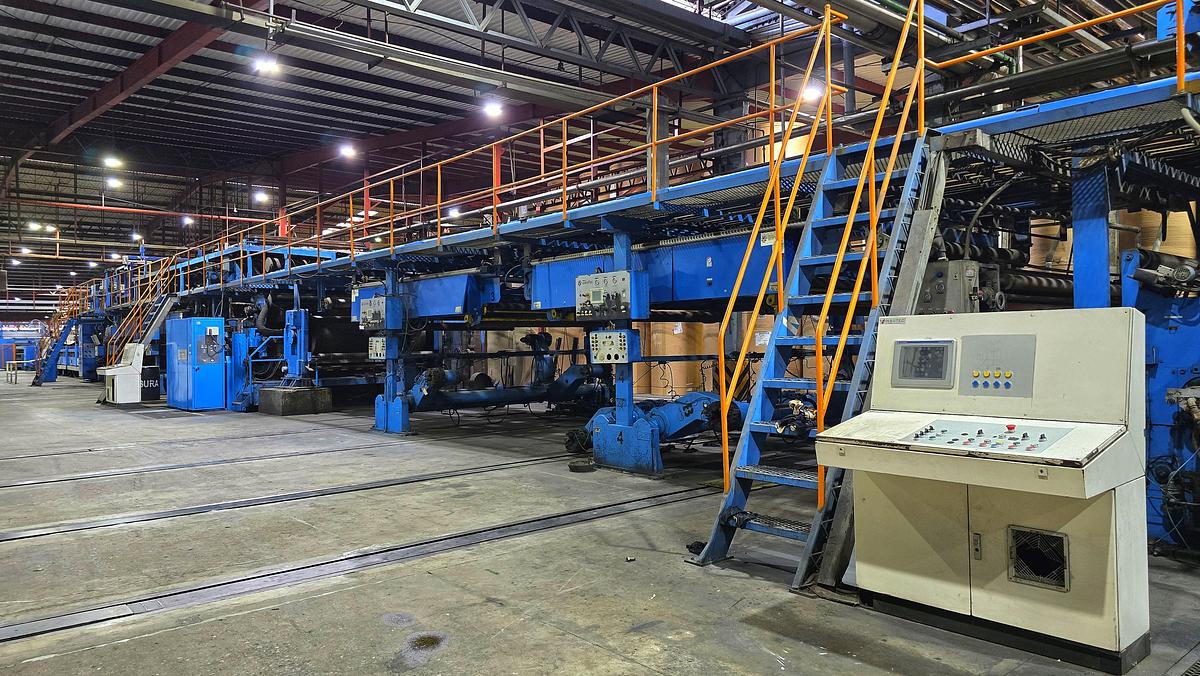

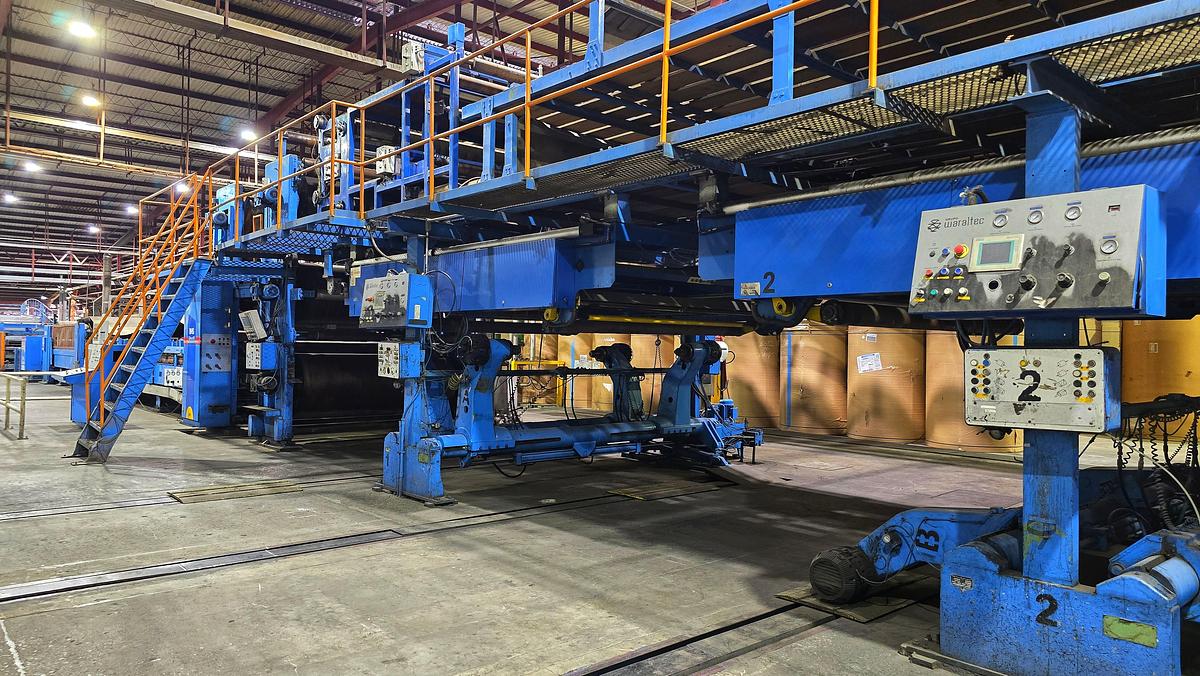

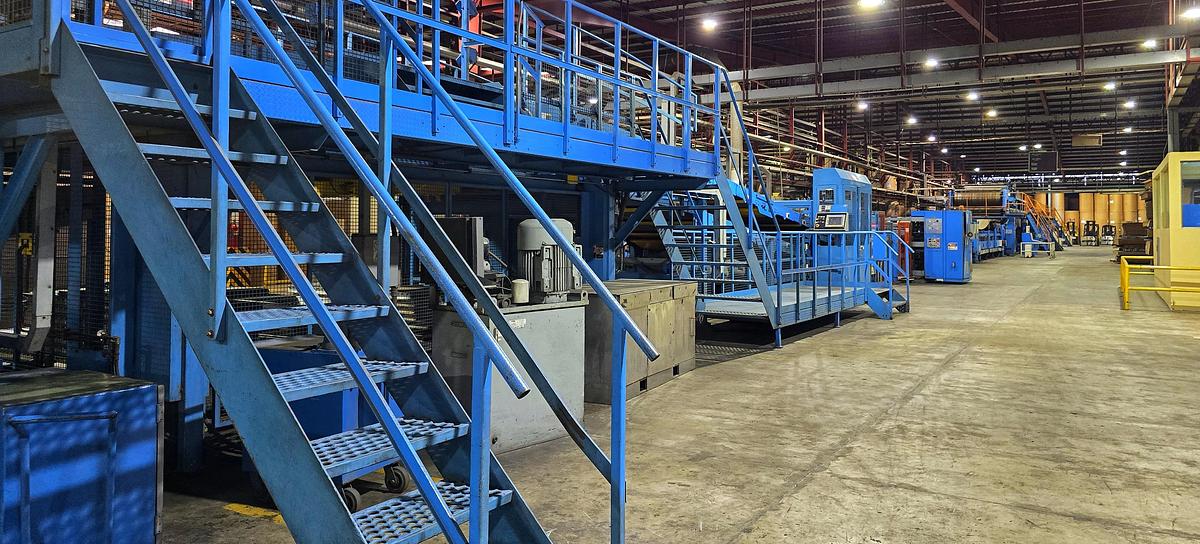

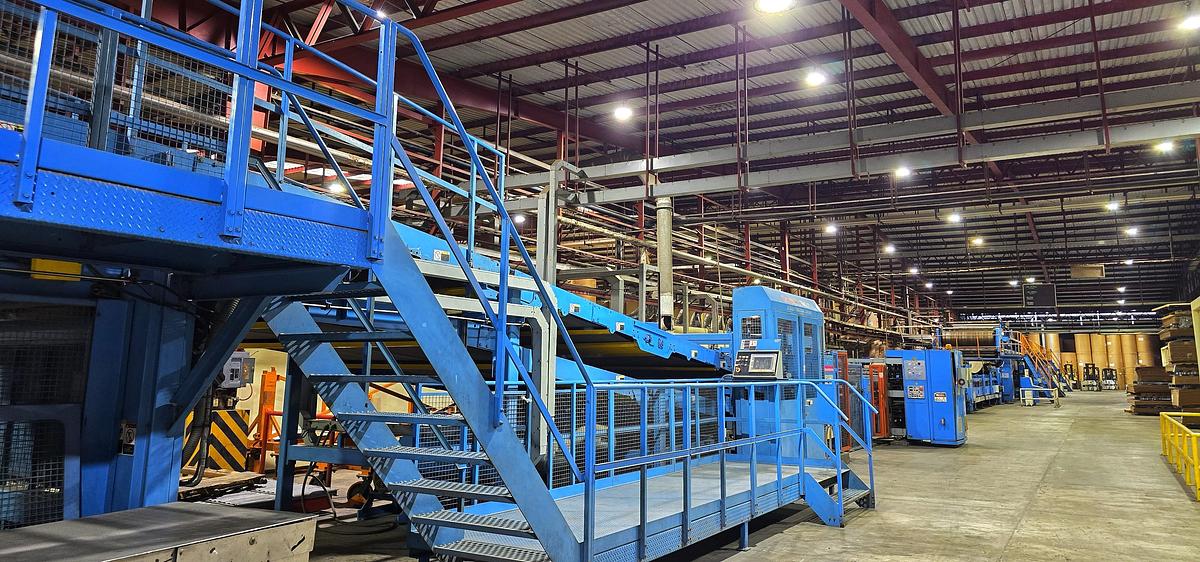

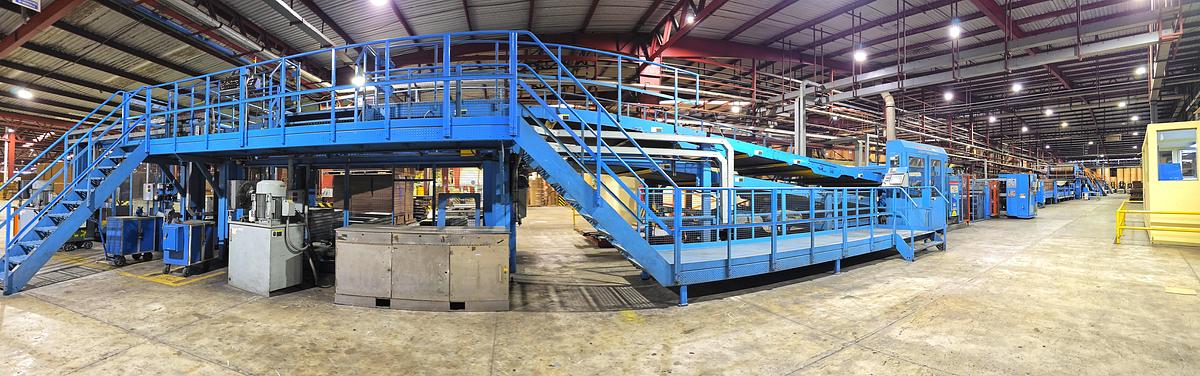

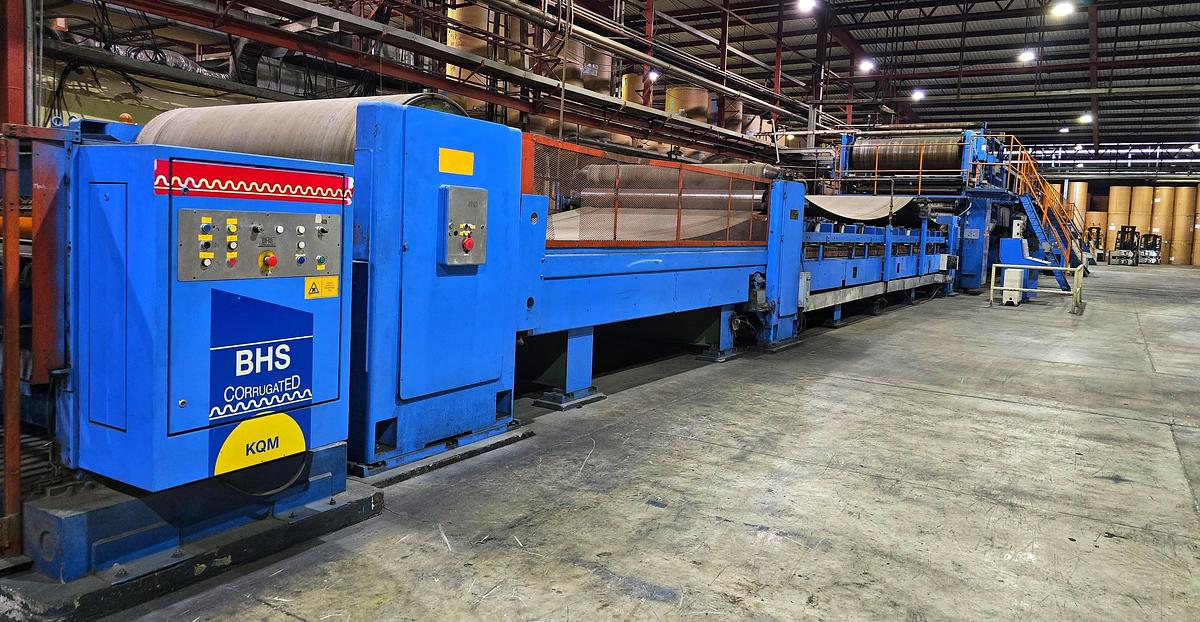

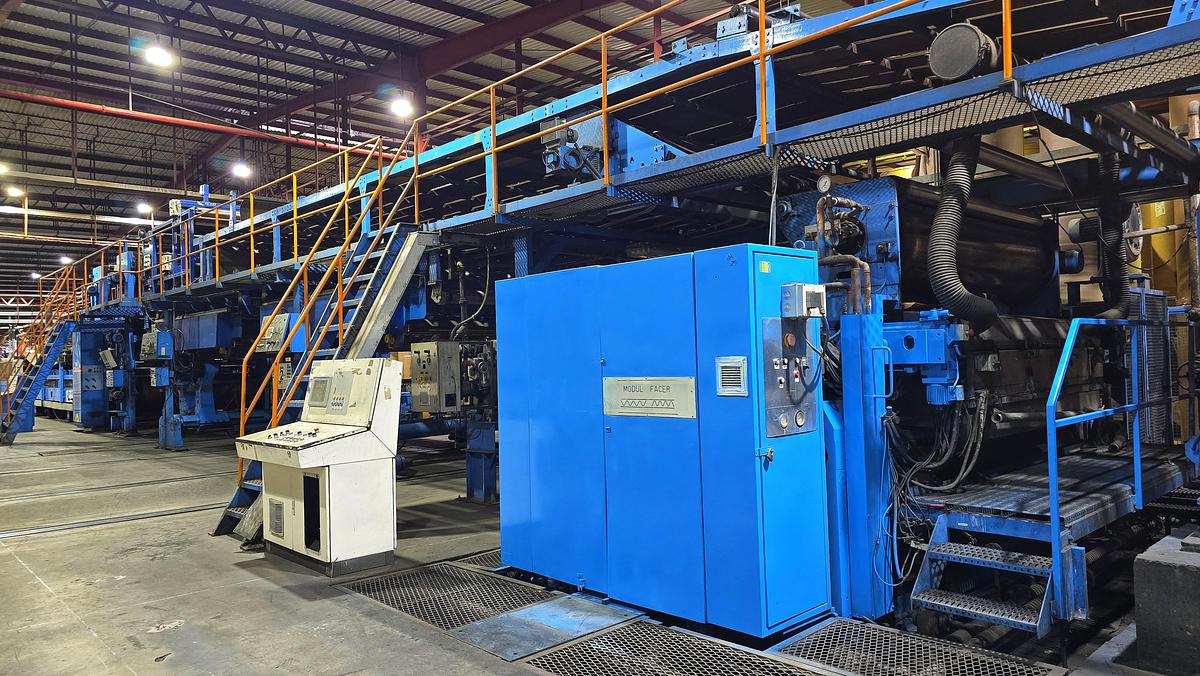

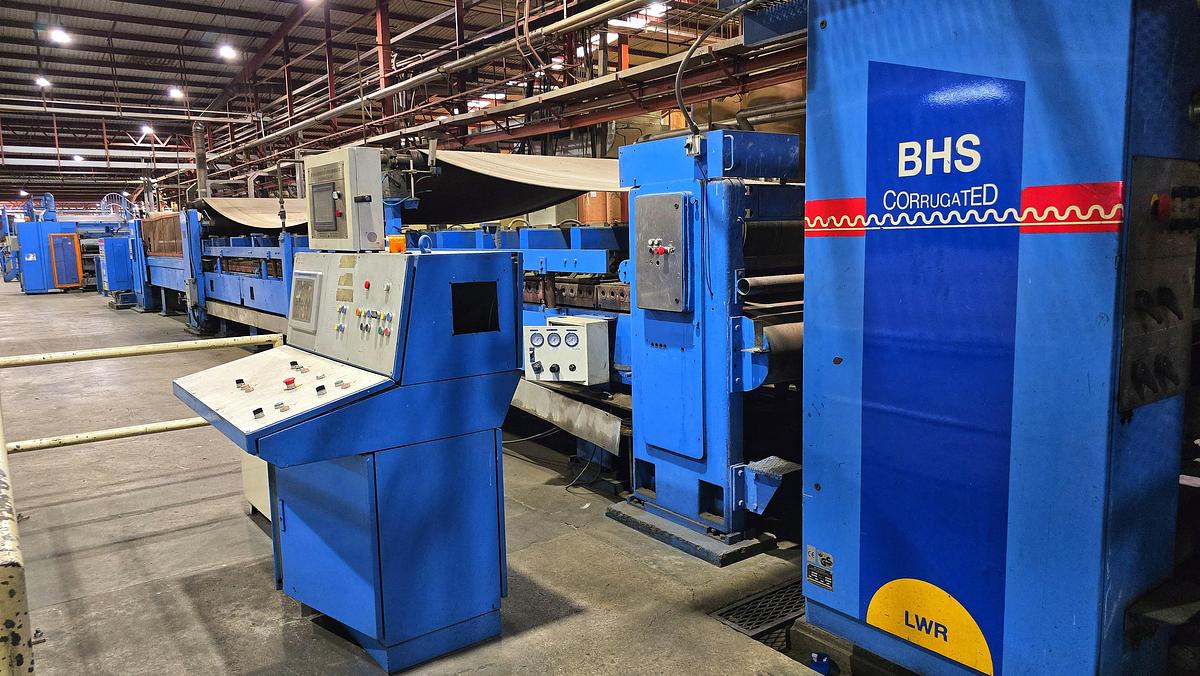

BHS Complete Corrugator Line

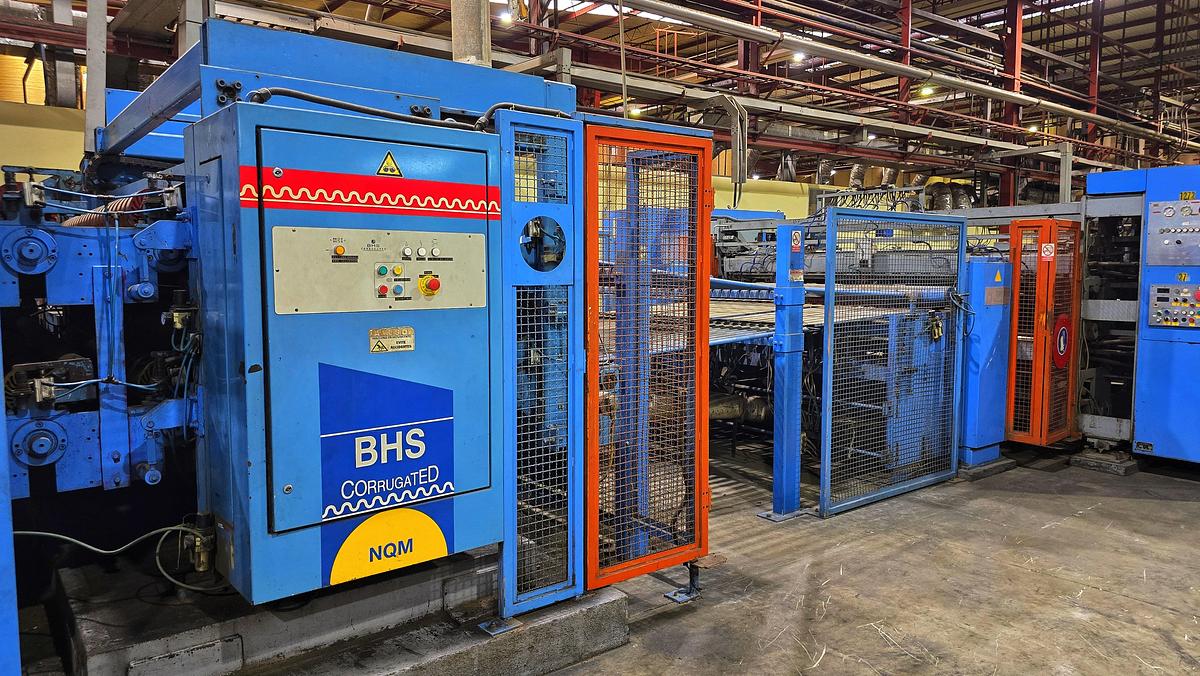

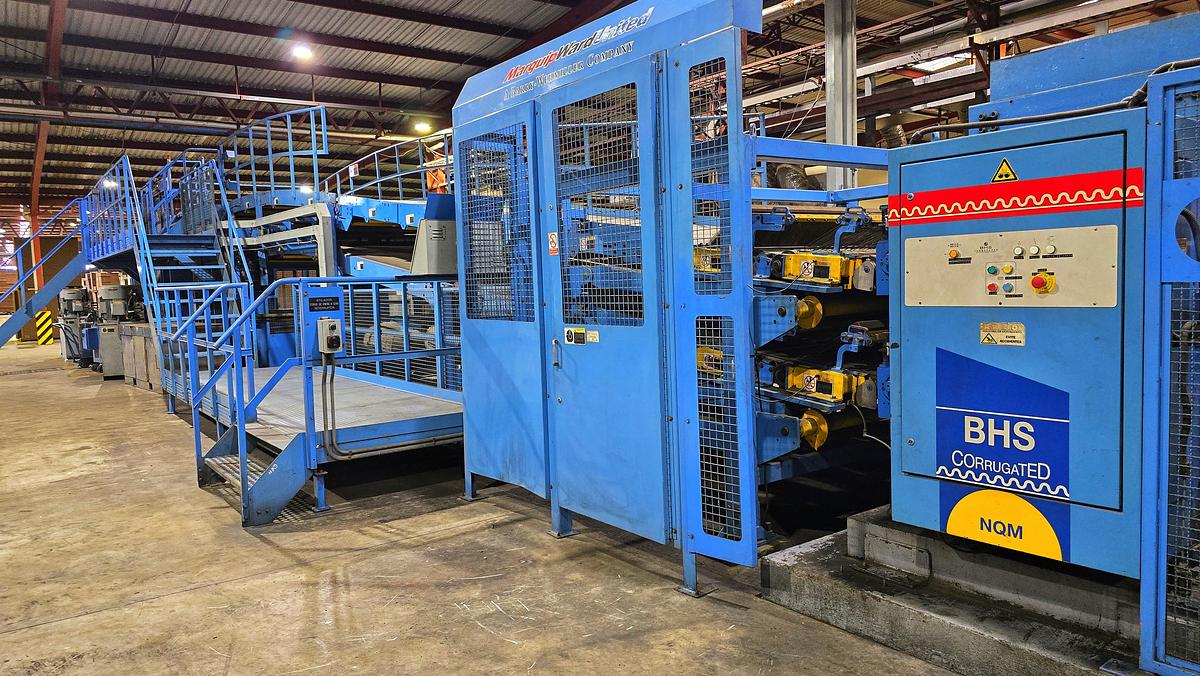

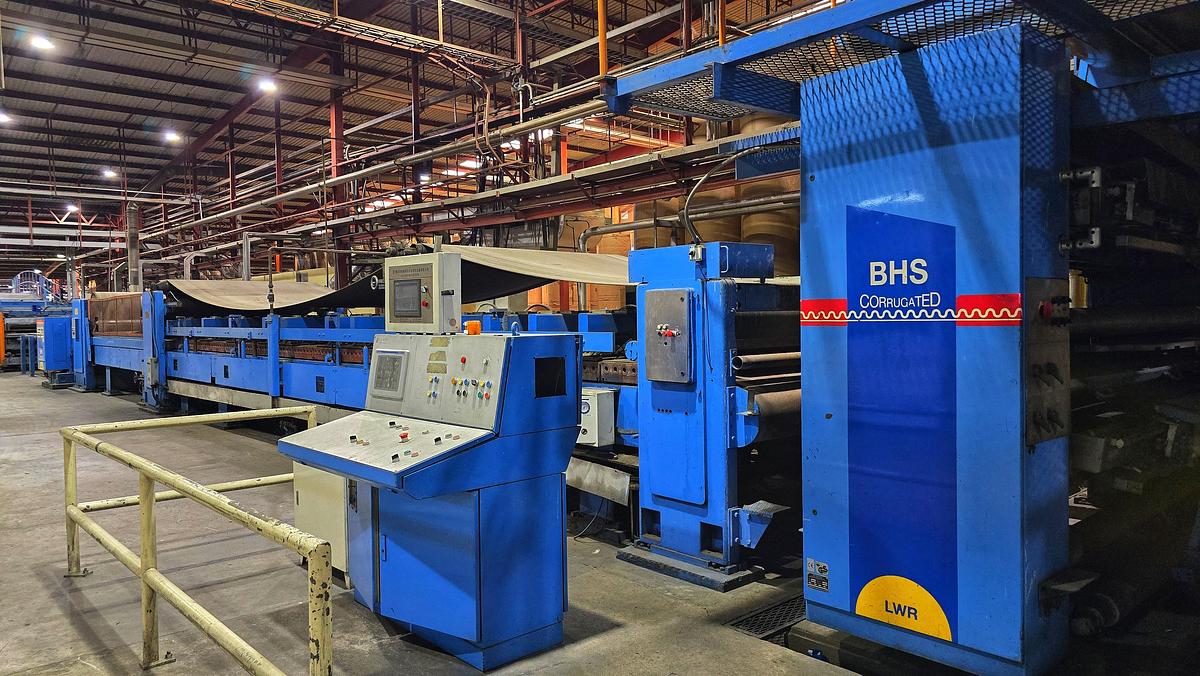

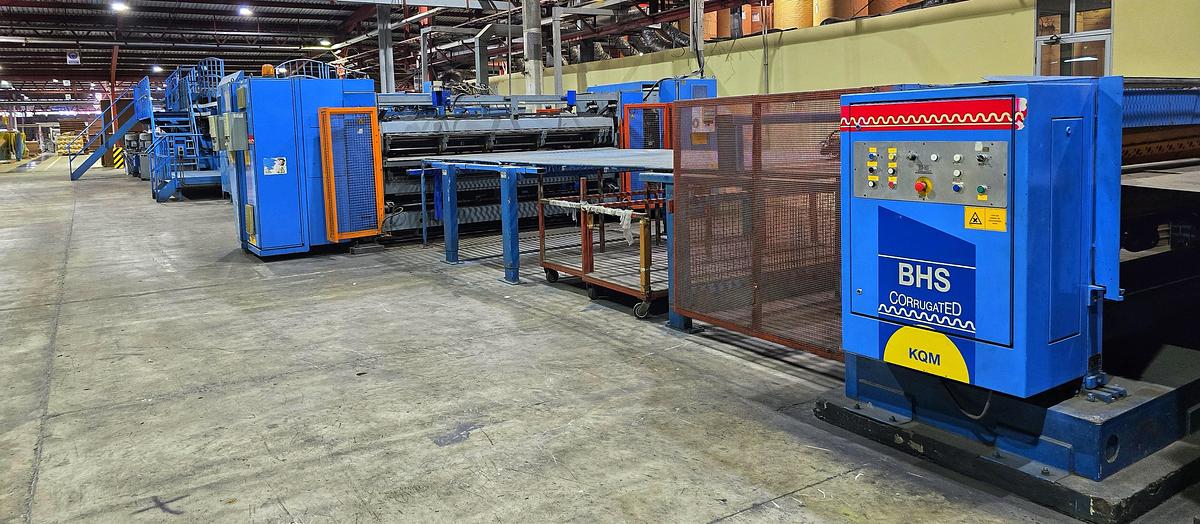

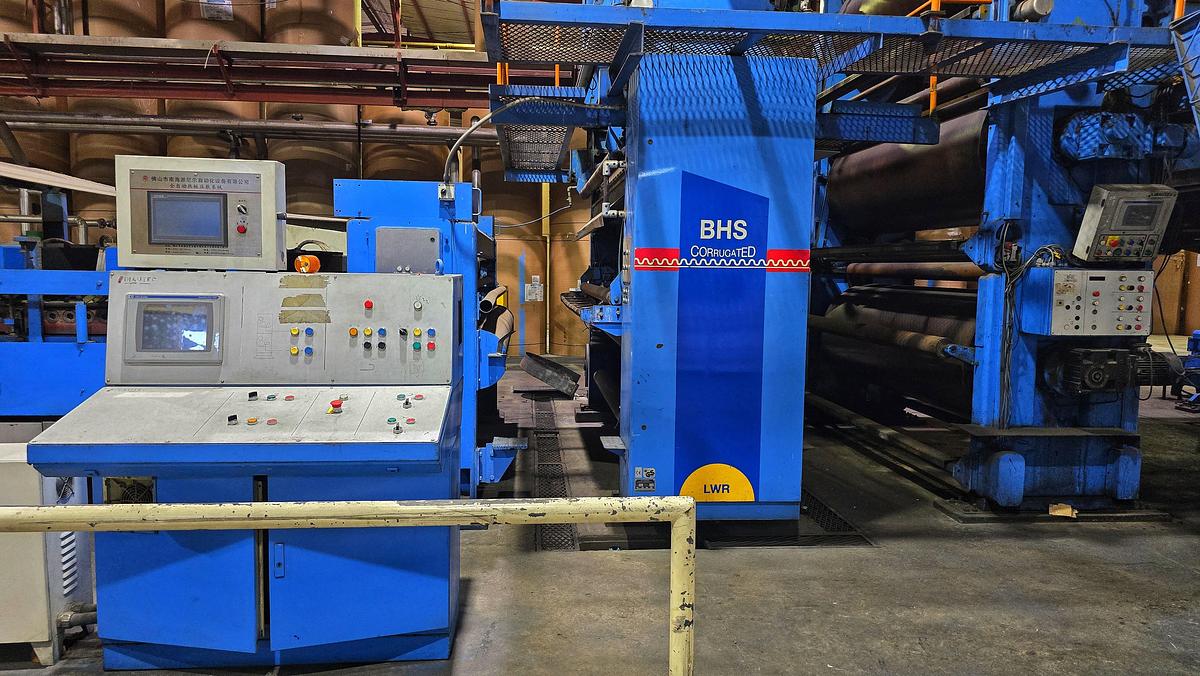

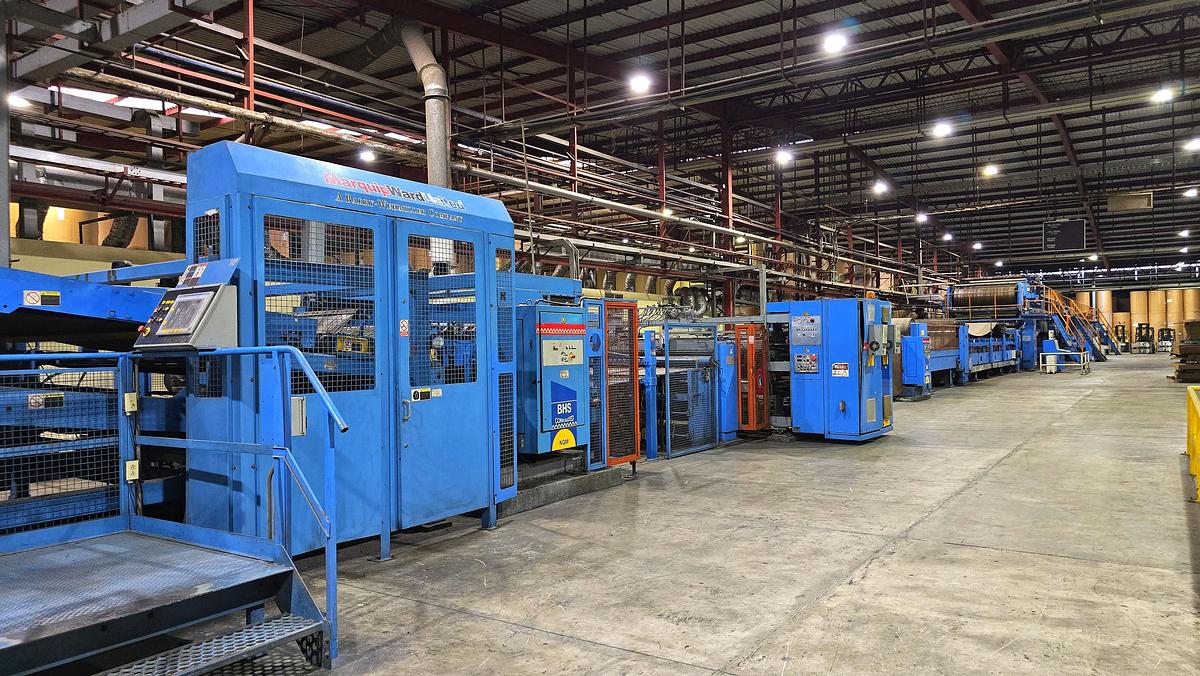

MAIN LINE COMPONENTS Single Facers (Module Facers) - MF “B” Flute - MF “C” & “E” Flute - Both units with electrical & electronic retrofit (2012). Roll Stands & Splicers - 5 Automatic Splicers 2013 - 5 BHS ASR/n Roll Stands – Year 1976 Preheaters & Paper Handling - 8 Preheaters BHS VZR – Electronic retrofit 2012 - Double Bridge Guide AL-GAR – 2013 - Paper brake/guide AL-GAR – 2012 Glue & Double Facer Section - Double Glue Station BHS LWR 1997 – Retrofit 2012 - Double Facer BHS DWR 1976 – Retrofit 2012 - Hotfoot pressure shoe system Cutting Section - Rotary Shear BHS KQM – 1997 - Slitter Scorer BHS SRA-M – 1997 – Retrofit 2012 - Diverter Table BHS PE – 1997 - Cut-off Knife BHS NQM – 1996 – Retrofit 2012 Stacker / Downstacker - MarquipWardUnited MCS – 2011 - Width: 2500mm - 460V 60Hz --------------------------------------------------------------- PRODUCTION SPEEDS (2020 data) - Single Wall (Banana box top): 220 mpm - Double Wall (Banana box bottom): 170 mpm --------------------------------------------------------------- ELECTRICAL SYSTEM - Major retrofits performed in 2012 across Single Facers, Preheaters, Glue Unit, Slitter/Scorer, and Cut-off. - Includes updated servo controls, frequency controllers, sensors, PLC modules, and modernized wiring cabinets. --------------------------------------------------------------- INCLUDED: MASSIVE SPARE PARTS PACKAGE Over 3,000+ spare parts included — bearings, belts, cylinders, motors, servos, valves, controllers, reducers, encoders, hydraulic components, doctor rolls, corrugating rolls (new B & C flutes), electronics, PLC modules (Siemens S7, AB ControlLogix), fuses, gearboxes, sensors, etc. BHS CORRUGATOR
